GDQ1X series dual power automatic transfer switch belongs to CB grade, suitable for AC 50Hz / 60Hz, rated working voltage 230/400V, rated current up to 63A of dual power supply system. In the case of common power failure, the switch can be applied with standby power or power generation automatic switching of the machine to ensure the reliability and safety of the power supply. It is used to ensure that power supply places such as hospitals, shopping malls, banks, fire-fighting, high-rise buildings, etc. guarantee powered keeping on. The product has a flame-fighting interface, which can be easily linked with the flame-fighting equipment, and the switch is remotely controlled to cut off the power. The flame-fighting product has a generator interface to automatically start or stop working of the generator.

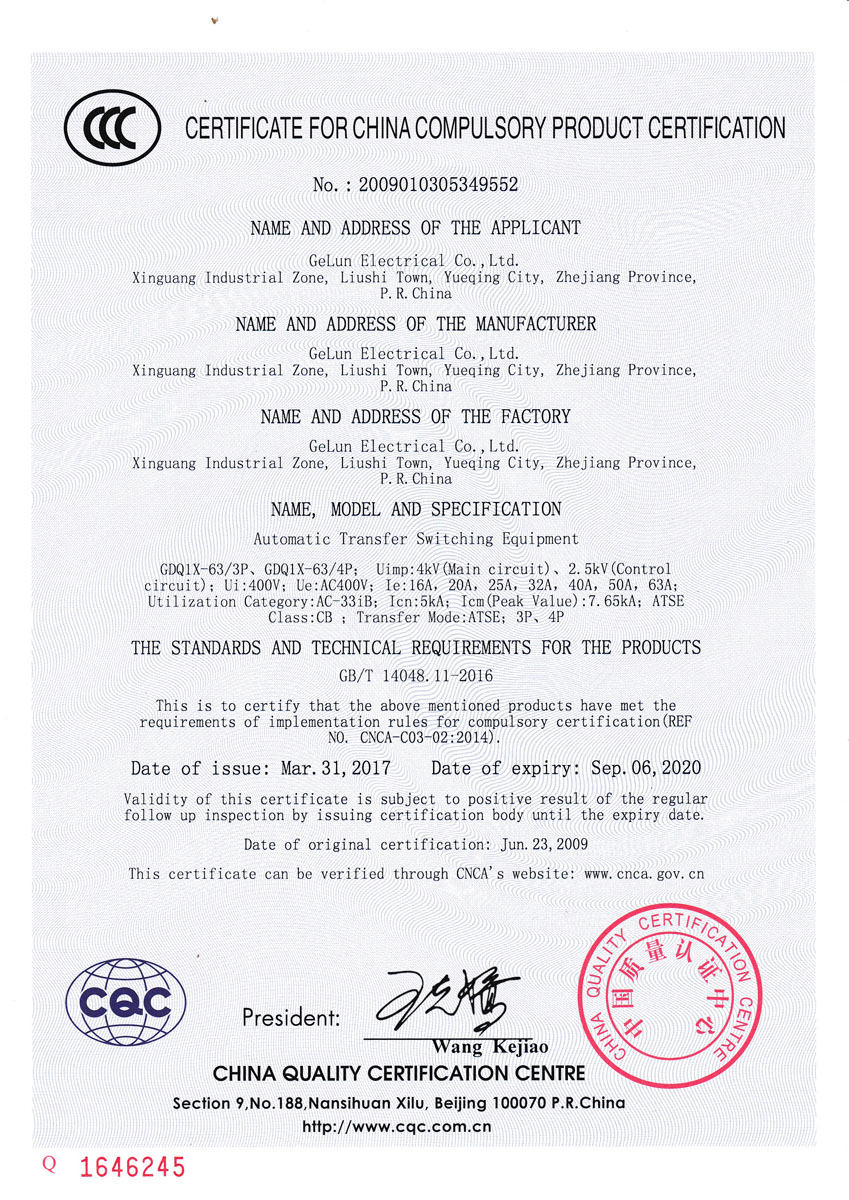

Comply with the IEC60947-6、GB/T 14048.11 Standard

Frame Size：63A

Current Grade：16-63A

Switching Capacity：Icn=5kA

Poles：3P、4P
